Welcome to Iresco Electricals Pvt. Ltd. Leaders in Resistors - 50 years. Technology Solution providers in Power Electronics. Iresco Electricals Pvt. Ltd. has been widely known by its former name INDIAN ELECTRONICS since its esta ...Read More

Iresco Electricals Pvt Ltd

Welcome to Iresco Electricals Pvt. Ltd. Leaders in Resistors - 50 years. Technology Solution providers in Power Electronics. Iresco Electricals Pvt. Ltd. has been widely known by its former... read more

Our Products

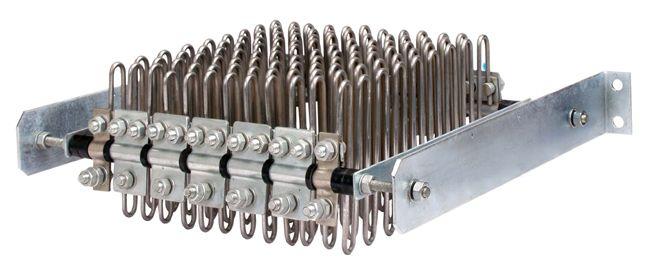

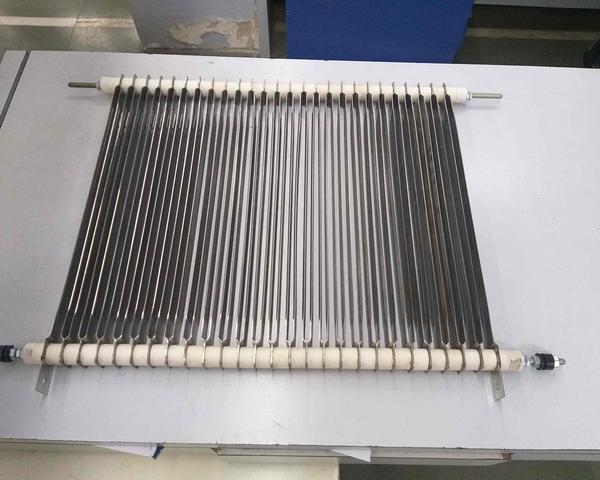

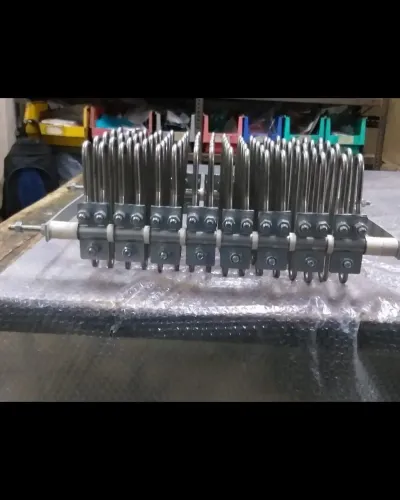

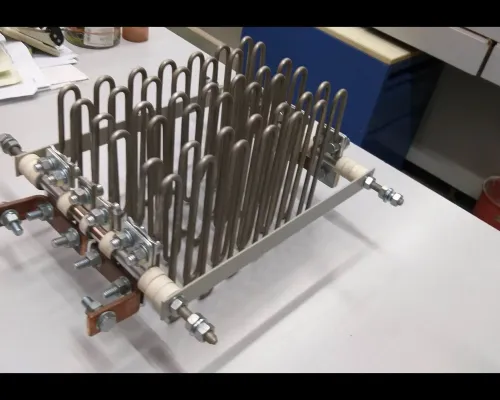

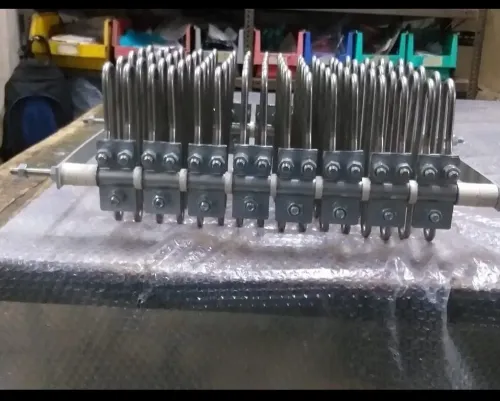

FEATURES :The design of wire and plate grid, lends itself to various advantages over conventional cast iron grids and standard wire wound resistor assemblies. In the assembly design breakable parts are excluded, resulting in robust construction. In the wire grid assemblies, the unique terminal arrangement, facilities easy replacement of individuals grid.The assembly can tailor designed and is available in stack and panel mounting versions. This is ideal for compact design of special purpose control panels. The panel mounting versions has an added advantages of saving in interconnection and wiring.Material : Standard-stainless steel, other alloys request.Applications : Load Banks, Rotor Starters, Crane Controllers, Motor starting and braking resistors.

Wire / Plate Grids / Strips

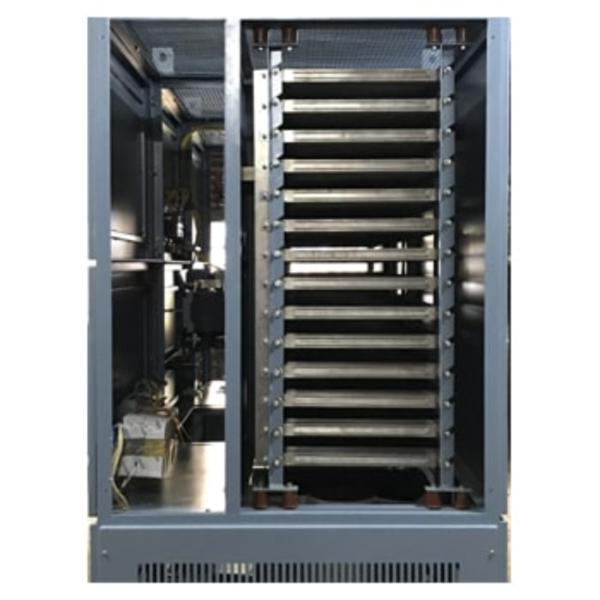

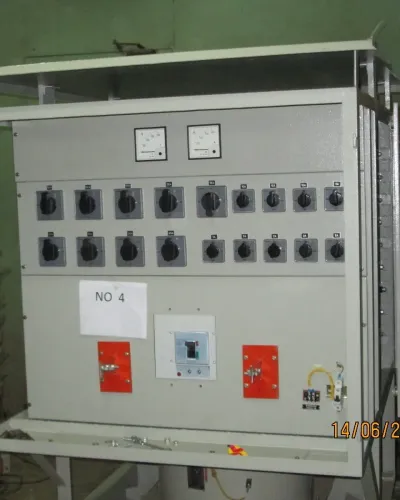

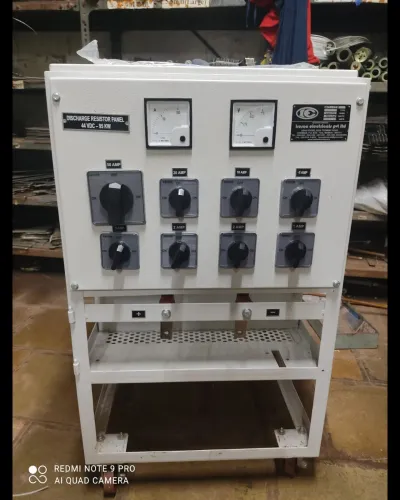

Ador Digitron 500KV Load Bank for DG TestingWe are a company manufacturing resistors load since 1963.Our loads are working satisfactorily in diverse industries like Defence, Transportation, Cement plant, Battery Industries, Nuclear Power Plants, etc.We have designed and manufactured Resistor Loads upto 3MW in a single enclosure.SPECIFICATIONS :Voltage : 500 KW 3 PHASE, 415 VAC STAR CONNECTEDPower : 415Vac, ± 5%Freq : 50Hz, 3 PhaseVoltage rating : 239.6V per phase (415V Line to Line)Current rating : 696A per phaseResistance material : Fe : Cr : AlCooling method : Forced air cooledRating : ContinuousIndication Lamps : Indication lamps shall be clustered LED type (Power ON / Load Bank ON)Meters : AC Voltmeter with selector switch, Three AC Ammeters with separate CT’s (Separate Ammeter for each phase), KW meterPanel construction : Free standing floor mounting type, sheet steel construction with 1.6 / 2.0 mm thickness. Paint shade shall be smoke gray, shade no. 692 of IS:5, powder coated. Panel shall have suitable louvers for ventilation. Ingress protection shall be IP-20 class. Panel shall be forced air cooled. Cooling fans shall be provided so as to take out hot air out of panel fluentlyClimatic Conditions Ambient Temp : 50 Deg. C max Max. Relative Humidity: up to 90% non-condensing, not occurring simultaneously with max ambient temperature. Altitude: less than 1000Mtr above mean sea levelPanel Dimensions : L=2100mm, W=1700mm, H=2000mm approxCable Entry : From bottom

Ador Digitron 500KV Load Bank

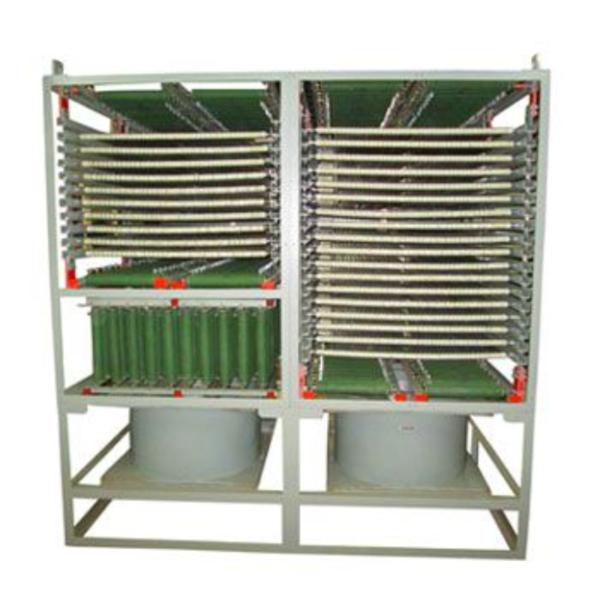

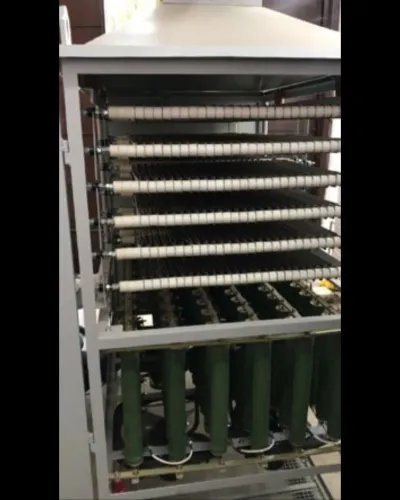

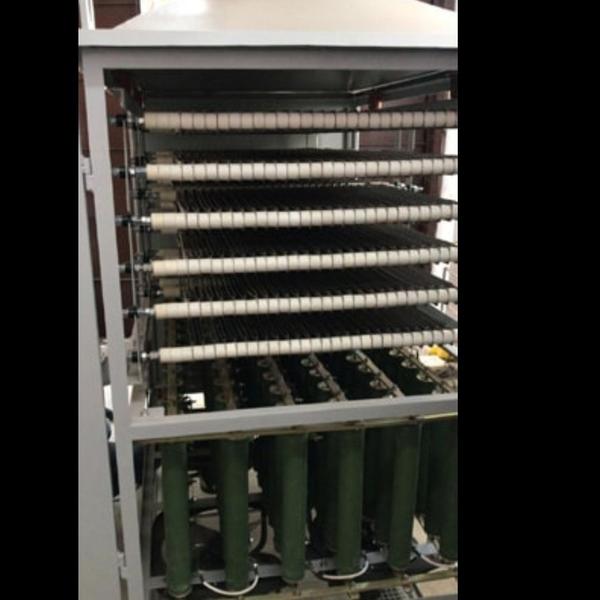

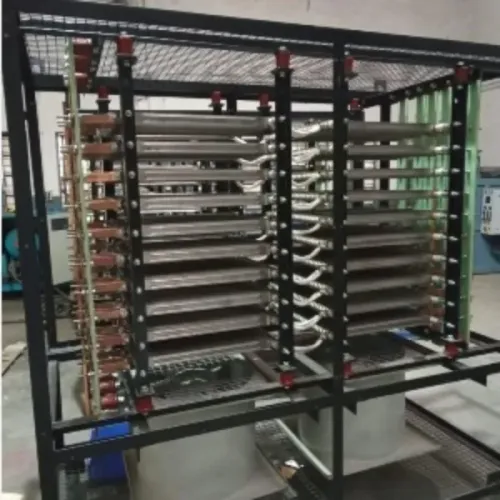

2700 KW, 500 VDC Resistors Load Bank for submarine battery testing compact design with forced coolingWe are a company manufacturing resistors load since 1963.Our loads are working satisfactorily in diverse industries like Defence, Transportation, Cement plant, Battery Industries, Nuclear Power Plants, etc.We have designed and manufactured Resistor Loads upto 3MW in a single enclosure.Our modular, strip grid design ensures compactness and better heat dissipation. Also removable sliding trays make maintenance easier.Our design for selection of resistance alloy and their cross sections ensures better life for the load bank. Calculation of correct CFM for tubular Axial cooling fans is also a critical aspect for load design.We use non-flammable fire resistant Teflon coated uninyvin cables for wiring to avoid fire hazards.We also use the best quality switchgear of reputed brands like Siemens / L&T / Legrand etc.Our loads have been working on a continuous duty operation satisfactorily and maintenance free for over 5 years in various industries including (Vertive).We sincerely believe in giving the client a well-designed product giving priority to quality and durability.

Resistor Load Bank

View All Products

about Iresco Electricals Pvt Ltd

about our organization

Welcome to Iresco Electricals Pvt. Ltd. Leaders in Resistors - 50 years. Technology Solution providers in Power Electronics. Iresco Electricals Pvt. Ltd. has been widely known by its former name INDIAN ELECTRONICS since its esta...Read More

5
Products Available

lATEST NEWS

update image

Fe Cr Al resistors manufacturer

Embark on today's adventures with the compass of t

Embark on today's adventures with the compass of t...

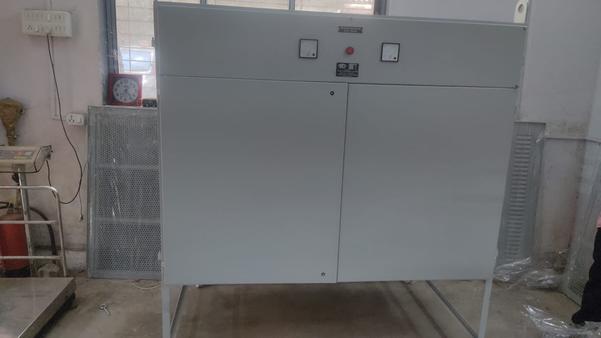

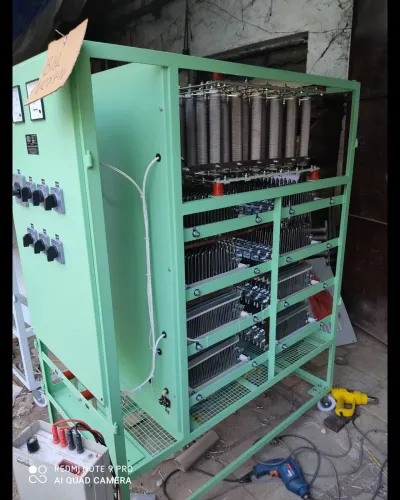

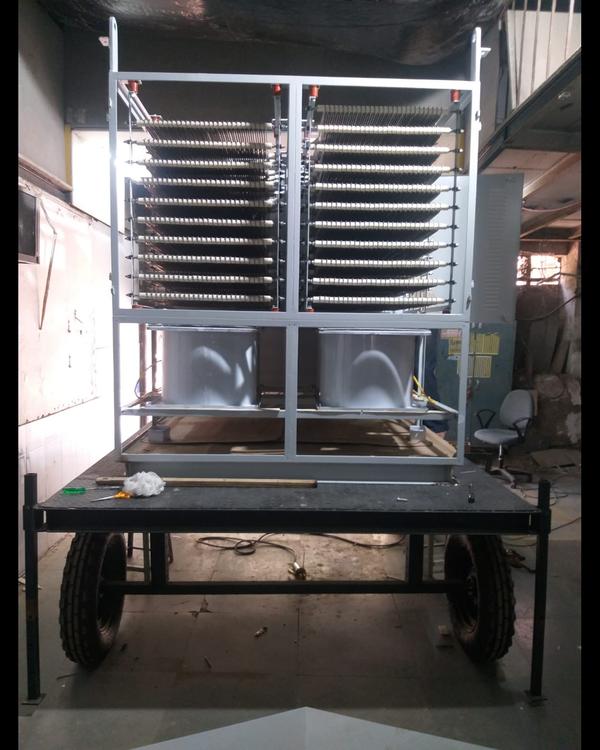

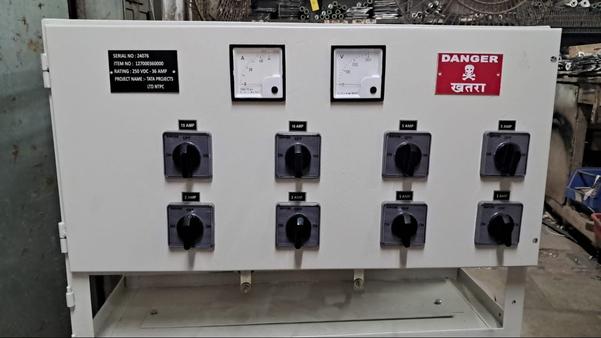

Load Bank manufacturing in chembur

Load Bank manufacturing in chembur
